產品介紹：

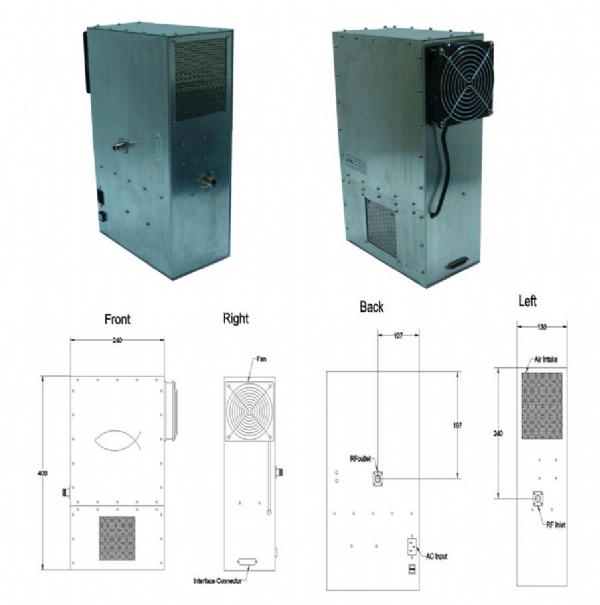

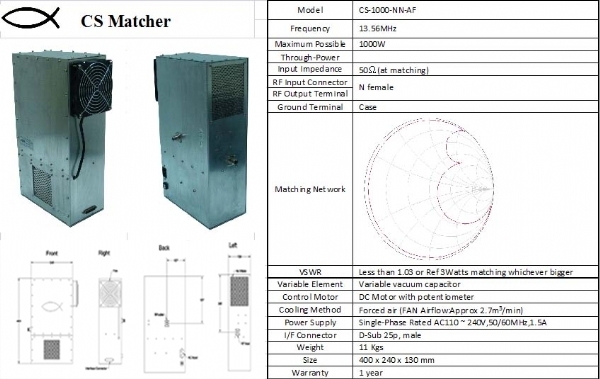

本公司可依客戶需求，生產製作 Matching Box

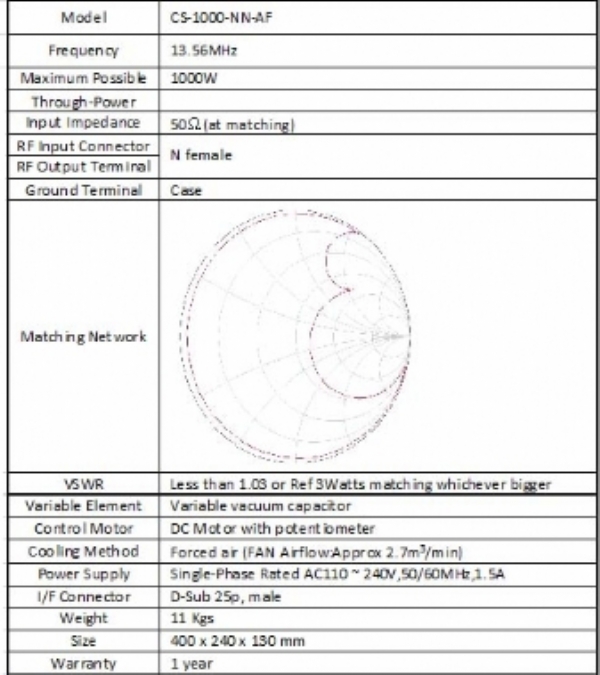

| Frequency |
13.56MHz |
| Maximum Possible |
1000W |
| Through-Power |
| Input Impedance |
50Ω(at matching) |
| RF Input Connector |
N female |
| RF Output Terminal |
N female |
| Ground Terminal |
Case |
| VSWR |
Less than 1.03 or Ref 3Watts matching whichever bigger |
| Variable Element |
Variable vacuum capacitor |
| Control Motor |
DC Motor with potentiometer |
| Cooling Method |
Forced air (FAN Airflow:Approx 2.7m3/min) |
| Power Supply |
Single-Phase Rated AC110 ~ 240V,50/60MHz,1.5A |
| I/F Connector |
D-Sub 25p, male |
| Weight |
11 Kgs |
| Size |
400 x 240 x 130 mm |
| Warranty |
1 year
|
